LED Lamps and Modules

Description

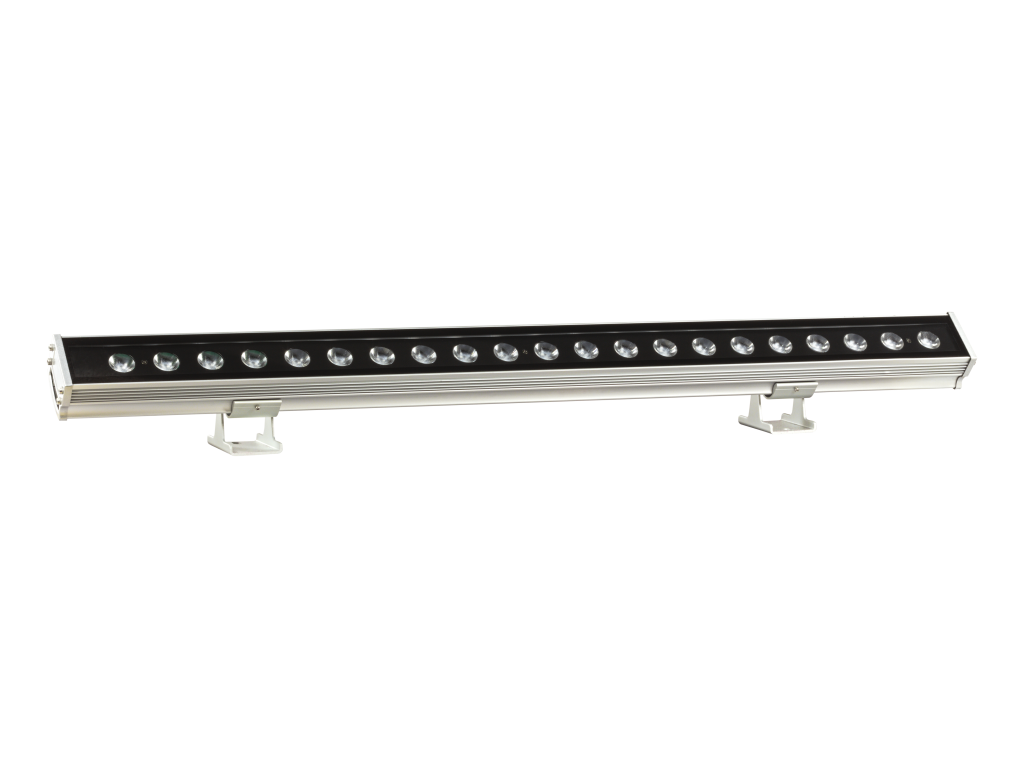

The PX862 lamp is an advanced lighting solution with specially arranged RGBW LEDs, which ensure even color mixing and homogeneous light distribution.
It has a maximum power of 85W and is controlled via DMX.
The housing is made of aluminum and glass, and its design meets the IP65 standard and provides resistance to dust and water, making the lamp an ideal solution for use in humid rooms.
PxTech RGBW is available with lens angles: 20°, 30° or 40°.

Technical data

number of LEDs 21
beam angle20° / 30° / 40°
available LED coloursRGBW
control protocolDMX
RDMYES
housing materialaluminum / glass
housing IP CodeIP65
power consumptionmax. 86 W
power supply24 V DC
weight4kg (with 7m cable)
dimensionsheight: 73mm
width: 1010mm
depth: 59mm
